Average Chimney Crown Replacement Cost in 2026
#
In 2026, chimney crown replacement cost typically ranges from $750 to $2,500 for a standard residential chimney. Small cracks that can be sealed with a flexible crown coating may cost $250 to $500, while a large, badly broken crown on a tall or hard-to-reach chimney can cost more because of scaffolding, roof access, and masonry labor.
The right price depends less on the word “replacement” and more on the actual condition of the crown. A surface crack may need sealing. Missing concrete, deep cracks, exposed brick, or water getting into the chimney usually calls for a full rebuild.
For Cook County homes, freeze-thaw weather makes early repairs especially valuable. Water enters a small crack, freezes, expands, and can eventually damage mortar, brick, flashing, and even the flue. Getting the scope right before work begins is often the difference between a manageable repair and a much larger masonry project.
Simple guide to chimney crown replacement cost:
When budgeting for masonry repairs at the top of your stack, prices reflect the extent of the deterioration, the materials poured, and the physical footprint of your chimney. Most U.S. homeowners spend between $450 and $1,600 for typical crown work, but a full teardown and recast lands higher depending on structural variables.

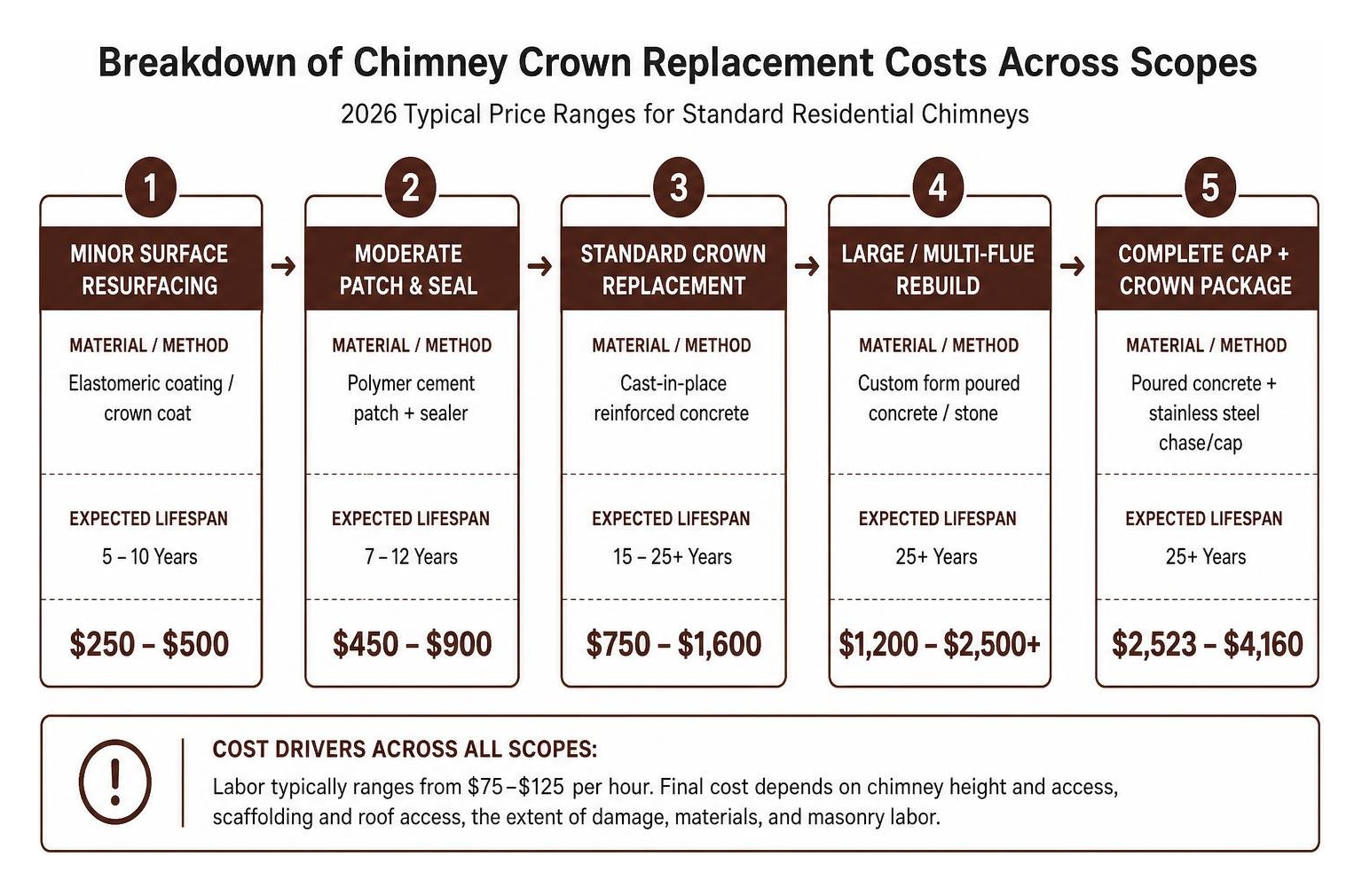

According to national chimney cost benchmark data, broad chimney repairs average between $400 and $2,500 across various scopes. For crowns specifically, here is how the numbers break down in 2026:
| Service Scope | Material / Method | Typical Price Range | Expected Lifespan |
|---|---|---|---|
| Minor Surface Resurfacing | Elastomeric coating / crown coat | $250 – $500 | 5 – 10 Years |
| Moderate Patch & Seal | Polymer cement patch + sealer | $450 – $900 | 7 – 12 Years |
| Standard Crown Replacement | Cast-in-place reinforced concrete | $750 – $1,600 | 15 – 25+ Years |
| Large / Multi-Flue Rebuild | Custom form poured concrete / stone | $1,200 – $2,500+ | 25+ Years |
| Complete Cap + Crown Package | Poured concrete + stainless steel chase/cap | $2,523 – $4,160 | 25+ Years |
Labor constitutes the largest portion of any masonry quote. Professional masons generally bill between $75 and $125 per hour, with setup, tear-off, forming, pouring, and weather protection dictating total project hours.
How Materials and Dimensions Impact Chimney Crown Replacement Cost
The material chosen for your crown dictates both immediate installation expenses and long-term durability:
- Mortar Wash (Inadequate): Many older chimneys were finished with standard masonry mortar smoothed over the top course of brick. Mortar lacks the tensile strength to withstand exterior exposure, shrinking and cracking rapidly under thermal stress. We never recommend mortar washes for long-term protection.
- Poured Reinforced Concrete (Gold Standard): A true chimney crown is constructed from 3 to 4 inches of Portland-cement-based concrete, reinforced with wire mesh or rebar. Material costs for concrete run $300 to $600, with labor adding $200 to $400+ for standard sizes.
- Custom Metal Covers & Chase Tops: Often fabricated from stainless steel or copper to cap prefabricated or masonry stacks. Material costs range from $500 to $1,200, requiring $300 to $600 in specialized installation labor.
Dimensions also drive expenses. Standard crowns under 8 square feet fit within baseline pricing. Once a crown exceeds 8 square feet or accommodates multiple flue tiles, forming complexity increases, requiring extra concrete volume and expansion joints around each separate flue liner. A proper crown must feature an overhang that extends at least 2 inches past the chimney face with an integrated drip edge underneath. This prevents rainwater from running down the exterior masonry.
Regional Pricing Variations Across the U.S.
Regional climates and metropolitan labor indexes alter baseline pricing by 10% to 25% or more across the country:
- Midwest Baseline: Serving as the national benchmark, standard concrete crown replacements in the Midwest average $750 to $1,500. In Cook County, Illinois, skilled labor rates trend slightly higher ($85–$130/hr), reflecting dense urban transit and cold-weather requirements.
- Northeast & Central Massachusetts: Regions subject to heavy Nor’easters and intense freeze-thaw cycles see crown repairs averaging $2,850 to $4,700 for bundled cap-and-crown remediation—roughly 12% above national norms. In Boston and Central Massachusetts, full rebuilds range from $750 to $1,200 on simple layouts to $3,500+ on complex historic stacks.
- Pacific Northwest: High annual rainfall demands specialized elastomeric membranes over cast concrete, increasing average material expenses.
For comprehensive planning, homeowners can review comprehensive chimney repair pricing estimates to evaluate how regional multipliers impact full masonry repairs.
Repair vs. Full Rebuild: Evaluating Damage and Warning Signs
Knowing whether your chimney needs a simple surface seal or a complete structural rebuild prevents you from paying for unnecessary work or applying a temporary patch to a failing structure.
When Minor Sealing Is Sufficient
A minor repair is viable when the underlying concrete slab remains structurally intact and well-bonded to the chimney structure.
- Hairline Cracks: Fissures smaller than 1/8 inch wide that do not penetrate the full depth of the concrete.
- Intact Overhang: The original crown possesses an adequate downward slope and extends past the brickwork without broken edges.
- No Internal Voiding: Tapping the crown with a small hammer produces a solid tone rather than a hollow rattle.
In these circumstances, applying an elastomeric coating or flexible crown coat restores full weatherproofing. These specialized formulas expand and contract with seasonal temperature swings. For localized surface deterioration, scheduling professional chimney crown repair in Franklin Park IL stops moisture intrusion while preserving your existing concrete structure.
When Full Crown Rebuilding Is Necessary
If the slab has failed structurally, surface sealers will fail as water continues to enter underneath. A complete rebuild is required under the following conditions:
- Structural Fractures: Cracks wider than 1/8 inch that extend completely through the concrete slab down to the top brick course.
- Spalling and Delamination: Large chunks of concrete breaking away, crumbling aggregate, or exposed rebar and flue surfaces.
- Improper Design: The existing crown is flat, holds pooling water, lacks a drip edge, or consists of thin mortar smeared directly against the flue tile without an expansion barrier.
- Efflorescence and Interior Leaks: White salt stains appearing on the exterior brick or ceiling stains in the living room indicate water is migrating through the crown.
When structural deterioration compromises the top courses of masonry, chimney rebuilding in Franklin Park IL provides a lasting solution by tearing down failed masonry and pouring a code-compliant reinforced crown.
Major Cost Factors and the Hidden Risks of Delay
Beyond materials and dimensions, external job-site conditions dictate total repair invoices:
- Chimney Height and Roof Pitch: A single-story ranch with a flat roof requires minimal staging. Conversely, a steep-pitch roof or a three-story chimney introduces fall-arrest rigging and scaffold setups, adding a 15% to 30% labor premium ($300 to $1,500+).
- Site Accessibility: Chimneys nestled between narrow city properties or obstructed by landscaping require additional labor hours to transport materials and setup scaffolding safely.
- Bundled Masonry Services: Masonry equipment setup makes up a substantial portion of initial labor. Combining crown recasting with expert tuckpointing across degraded vertical joints or resolving flashing issues with chimney flashing repair in Franklin Park IL reduces total mobilization costs.
DIY Repair vs. Professional Chimney Crown Replacement Cost
Hardware stores sell DIY brush-on crown coatings for $60 to $150, leading some homeowners to attempt repairs themselves. While applying a sealer to a low-slope roof is manageable for experienced DIYers, structural rebuilds carry significant risks:
- Safety Hazards: Working on elevated roof ridges without OSHA-compliant fall protection carries substantial physical risk.
- Incorrect Slope and Curing: Failing to pitch the concrete away from the flue leads to pooling water, while inadequate temperature protection causes new concrete to weaken and crack before curing.
- Lack of Expansion Gaps: Pouring concrete directly against clay flue tiles without an expansion joint causes the flue to crack the new crown as it heats and expands during fireplace use.
A failed DIY attempt often ends up costing double once a professional is called to remove improperly mixed concrete and address hidden water penetration.
The Compounding Expense of Deferred Maintenance

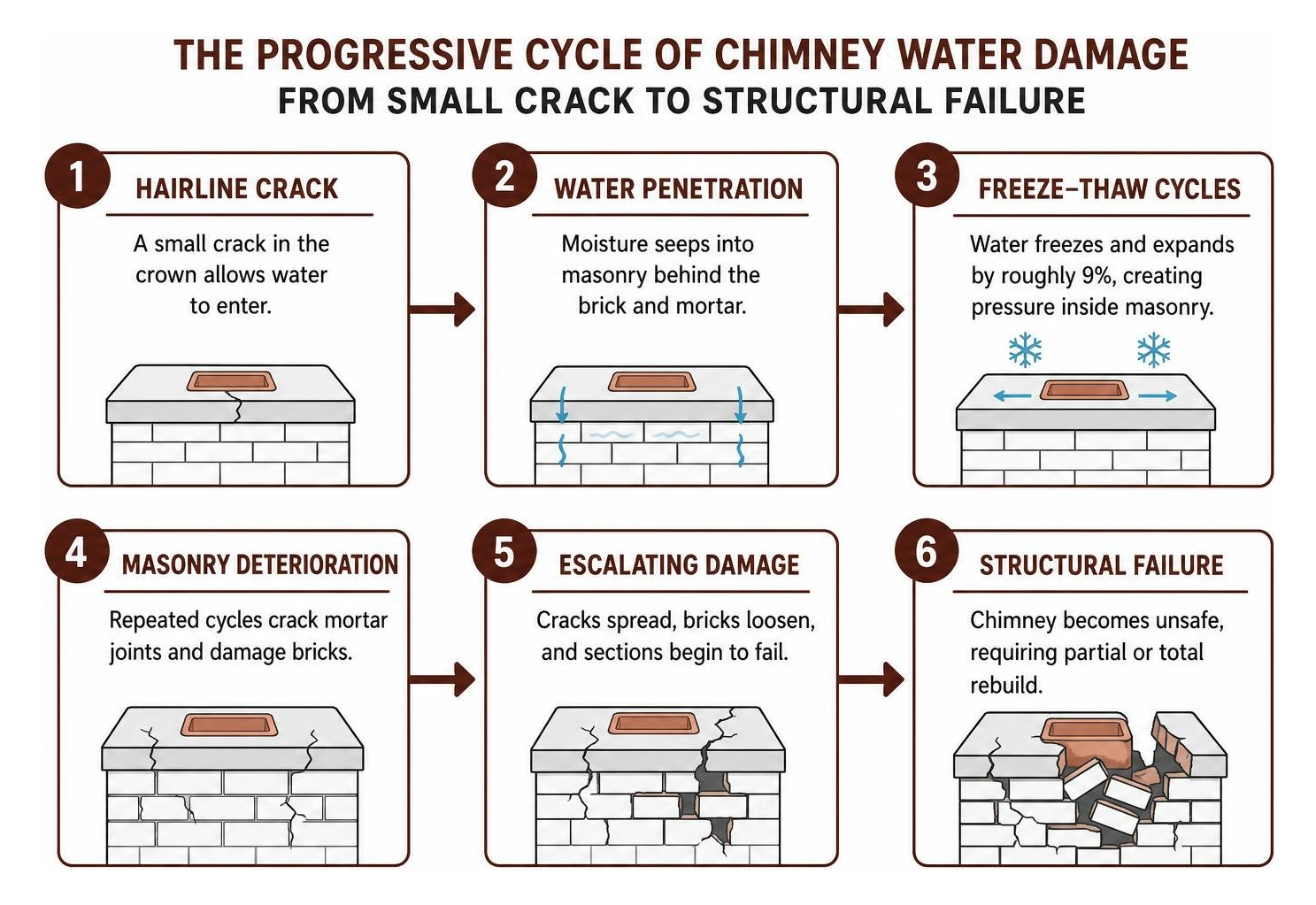

Water penetration operates on a compounding scale. What begins as a 1/16-inch hairline crack on top of your crown allows moisture to enter behind the masonry facade.
During Midwest and Northeast winters, moisture trapped inside masonry undergoes repetitive freeze-thaw cycles. Water expands by roughly 9% when freezing, exerting immense hydraulic pressure on surrounding mortar and brick.
A minor crown issue left unaddressed can turn a $250 to $900 maintenance task into a $3,500 to $15,000 partial or total chimney rebuild within two to three seasons.
Hiring a Mason: Quotes, Inspections, and Project Scope
To ensure your chimney investment delivers decades of service, verify that every contractor quote includes standard structural elements:
- Forming and Pour Specifications: The quote should specify minimum 3-inch thick 3,000+ PSI concrete reinforced with steel wire mesh or fiber, not standard masonry mortar.
- Overhang and Drip Edge: The contractor must form an overhang extending 1.5 to 2 inches past the chimney face with an integrated kerf (drip edge).
- Flue Isolation: The scope must include wrapping flue tiles with a flexible gasket material (such as ceramic fiber or closed-cell foam) to allow thermal expansion without cracking the concrete.
- Permits and Debris Disposal: Confirm old concrete disposal, cleanup, and site protection are included in the baseline bid.
Homeowners can explore broader masonry repair costs and maintenance guidelines across expert resources at Forbes Home to benchmark written estimates. For integrated home maintenance, our team provides full-service chimney services tailored to local structural and environmental demands.
Frequently Asked Questions About Chimney Crown Replacement
Does homeowners insurance cover chimney crown replacement?
Homeowners insurance generally covers chimney crown replacement only when damage results from a sudden, covered peril—such as a direct lightning strike, severe storm, or falling tree limb. Standard policies exclude gradual wear, aging concrete, thermal cracking, and deferred maintenance. To support a storm-related claim, schedule an inspection immediately following the weather event and provide detailed photo documentation to your adjuster.
How long does a new concrete chimney crown last?
A properly poured, steel-reinforced concrete crown with a distinct drip edge lasts 15 to 25 years or longer. You can extend this lifespan by applying a breathable elastomeric water repellent every 5 to 7 years. In contrast, improper mortar washes rarely survive more than 3 to 5 years before developing severe cracks.
Is a chimney inspection required before replacing the crown?
Yes. The National Fire Protection Association (NFPA 211 standard) recommends an annual chimney inspection, and a professional evaluation is crucial before replacing a crown.
- Level 1 Inspection ($100–$250): A visual check of readily accessible exterior and interior components.
- Level 2 Video Inspection ($200–$600): Uses an internal camera system to examine internal flue walls, clay liner joints, and the smoke chamber.
A Level 2 inspection confirms whether water entering through a cracked crown has damaged interior clay flue tiles or the surrounding framing, ensuring all hidden hazards are addressed during the repair.
Conclusion
Your chimney crown serves as the primary weather shield for your entire fireplace structure. While a chimney crown replacement cost of $750 to $2,500 represents an upfront maintenance expense, addressing cracked concrete promptly prevents extensive masonry repairs, liner degradation, and interior water damage down the road.
